Business Platform
ShareUp5™ 平台基础服务
Powerful, Efficient Development Innovation
SOC设计性能验证
迅速的系统验证
最佳的Software开发
- PULPino Platform
- PULPissimo Platform
PULPino Platform
主功能
Single-core RISC-V based small microcontroller Platform
CPU Cores
32-bit 2-stage Ibex (Zero-riscy)
32-bit 4-stage CV32E40P (RI5CY)
Memory
Separated Data RAM and Instruction RAM
32kB Data RAM, 32kB Instruction RAM
Peripherals
SPI slave & SPI Master
GPIO, UART, I2C, TIMER
JTAG (Debug)
GPIOs, UART, SDIO, TIMER
Event Unit (Interrupt, Event, Sleep), Boot ROM
AXI4 Interconnection bus via bus adapter
APB for Peripheral bus

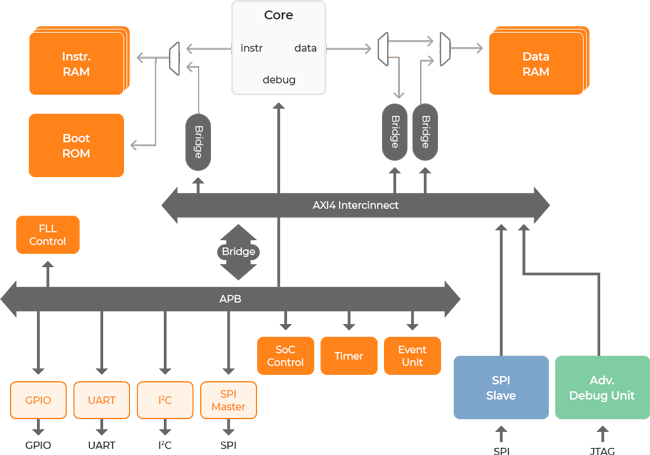

BLOCK DIAGRAM
← Scroll left and right →
APPLICATION
Tiny-Microcontroller
Wearable IoT device
Sensor controller
Simple communication controller
(Bluetooth/BLE controller, Ethernet controller, etc.)
PULPissimo Platform
主功能
RISC-V based advanced microcontroller / Edge AI Processing platform
CPU Cores
32-bit 2-stage Ibex (Zero-riscy)
32-bit 4-stage CV32E40P (RI5CY, RI5CY+FPU)
64-bit 6-stage CVA6 (Ariane)
Memory
512kB of L2 Memory
16kB of energy efficient latch-based memory (L2 SCM BANK)
Peripherals
QSPI (up to 280 Mbos)
Camera Interface
I2C, I2S, SPI
JTAG (Debug)
GPIOs, UART, SDIO, TIMER
Interrupt controller, Bootup ROM
Autonomous IO DMA Subsystem (µDMA)
Hybrid Logarithmic Interconnect (Low latency interleaving matrix)
Low Power management

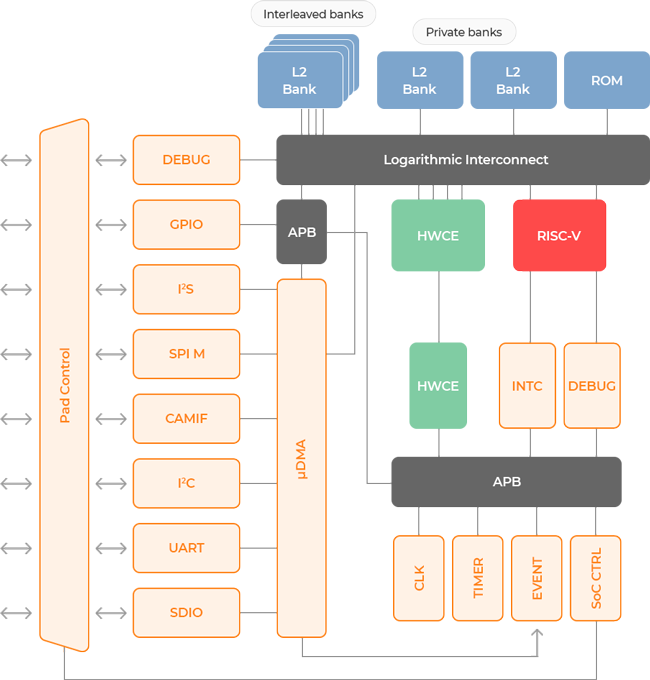

BLOCK DIAGRAM
← Scroll left and right →
APPLICATION
Edge AI Processing Devices
Smart surveillance camera
Face Detection & Gesture recognition
Autonomous Micro-Drone
Vital sign monitoring
Wearable health care devices
Smart factory & Machine monitoring
system
